ISA On-Prem Deployment

ISA On-Prem Deployment

InstaSafe Secure Access (ISA) on-premises deployment extends the capabilities of the InstaSafe Cloud Delivery Platform (ICDP) into the customer's on-premises infrastructure. This will integrate InstaSafe enterprise remote access software solution into their corporate network.

Key Technical Features

VMDK Image File: A Virtual Machine Disk (VMDK) image file is provided to customers.

Resource Allocation: The image is pre-configured with 4 CPU cores, 4 MB memory, and 8 GB storage, with the option to expand storage as required.

Comprehensive Feature Set: The image incorporates all basic features available in the ISA cloud infrastructure. Additional features are enabled based on customer specifications prior to sharing the image file.

Unified Controller and Gateway: In on-premises deployments, the ISA Controller and Gateway operate as a unified entity, performing the roles of both. The option to add a Controller is eliminated as the Controller is already incorporated within the image file.

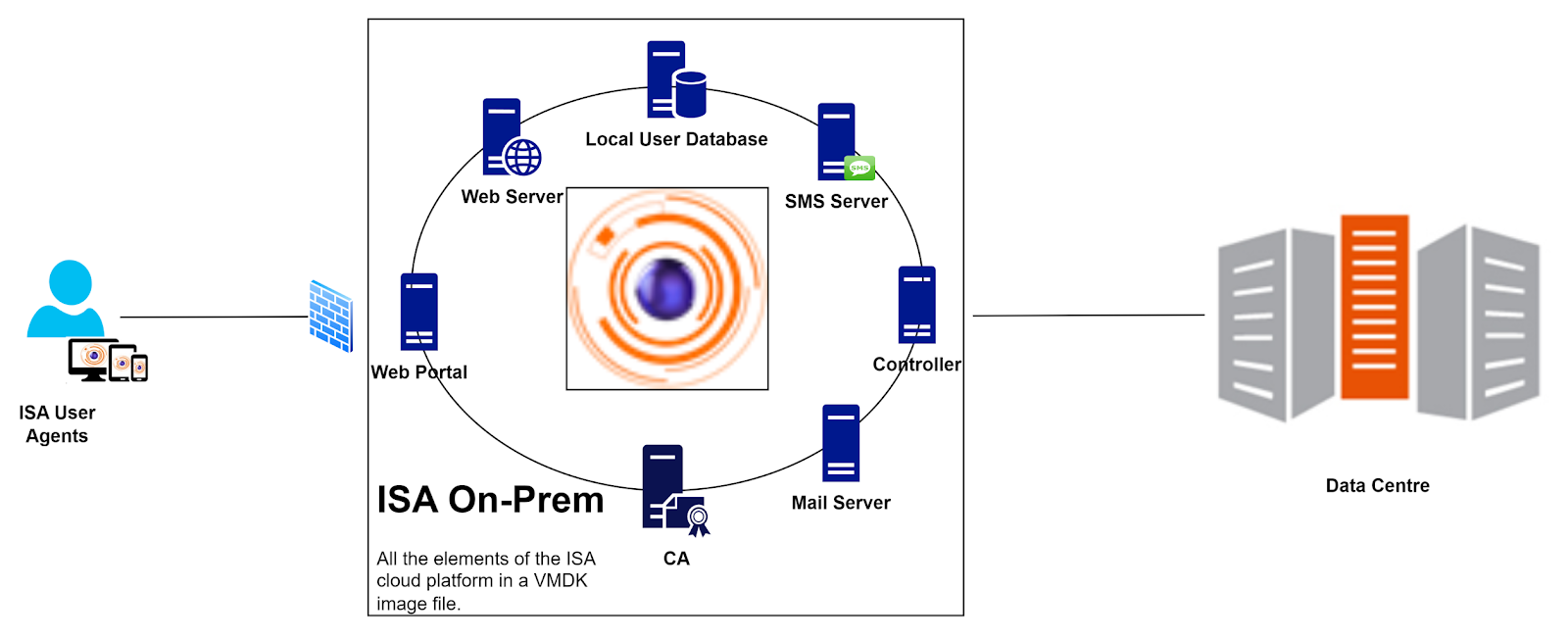

Components Hosted Within the Image

Web Portal: Accessible within (and outside of) the on-premises environment, providing a centralized interface for managing secure access.

Web Server: Facilitates secure communication between users and the ISA deployment.

Authentication Server and Database: Manages user authentication securely with an integrated database for streamlined access control.

Controller: Manages access control and data connection between the remote uses and the Gateway.

PKI Server: Provides Public Key Infrastructure for encryption and authentication.

Mail Server and SMS Server: Manages multi-factor authentication through email and SMS, enhancing overall security.


Conclusion

ISA on-premises deployment provides a comprehensive and integrated secure enterprise remote access solution customised as per customer requirements.
