Prerequisites for installing ISA Gateway Agent

Prerequisites for installing ISA Gateway Agent

This article lists the hardware and network prerequisites for installing the Agent.




ISA Gateway Agent

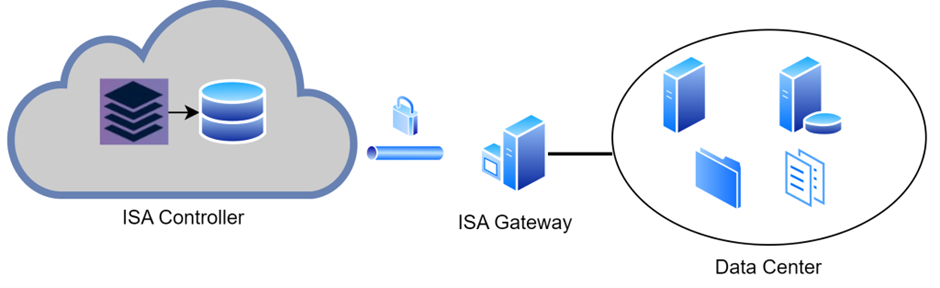

InstaSafe Secure Access (ISA) Gateway Agent is a software that acts as the entry and exit point for user access.

Gateways are deployed at the edge of a private network, and are used to connect remote clients or networks to the private network.

It is responsible for encrypting and decrypting data sent over the secure connection, as well as routing the data between the client and the private network.

Gateways use DTLS protocol to establish and secure the connection. It can also be used to connect two separate private networks together, such as in a site-to-site configuration.

Hardware Prerequisites

      The ISA Gateway must be provisioned on a physical or virtual server at each of the data centres where applications and other services are hosted that are remotely accessed by users.

      To ensure redundancy, it is recommended to provision a backup Gateway as well. This ensures that unforeseen issues like hardware failure or OS corruption do not lead to downtime.

Software Prerequisites

      Ensure the date and time is set correctly. Refer this article on how to set data and time on Ubuntu.


      Ensure the time zone is set correctly.


      The Ubuntu server must have the latest updates.

      Operating system requirements:

OS

Ubuntu 20.04 LTS - Ubuntu 22.04 LTS (https://ubuntu.com/download/server)

OS Type

64-bit

Memory

2 GB (minimum)

Disk Size

10 GB (minimum) free space

CPU

1 x Dual Core processor (x64 based AMD)


Network Prerequisites

      Firewall rules must be updated to allow outgoing connections to the following IP addresses and port numbers.


Source
Destination
Port
Direction
ISA Gateway IP


13.234.13.233, 3.6.62.25, 13.234.125.194, 3.6.127.45



UDP Ports*
Outbound
ISA Gateway IP


35.154.170.140



TCP 443
Outbound

*The IP addresses and port numbers are unique to every deployment and shall be provided by the InstaSafe Tech Team.

      Unrestricted Internet access must be provided at the time of installation so that relevant packages and repositories could be downloaded. It is recommended to provide direct Internet access instead of via a proxy.
